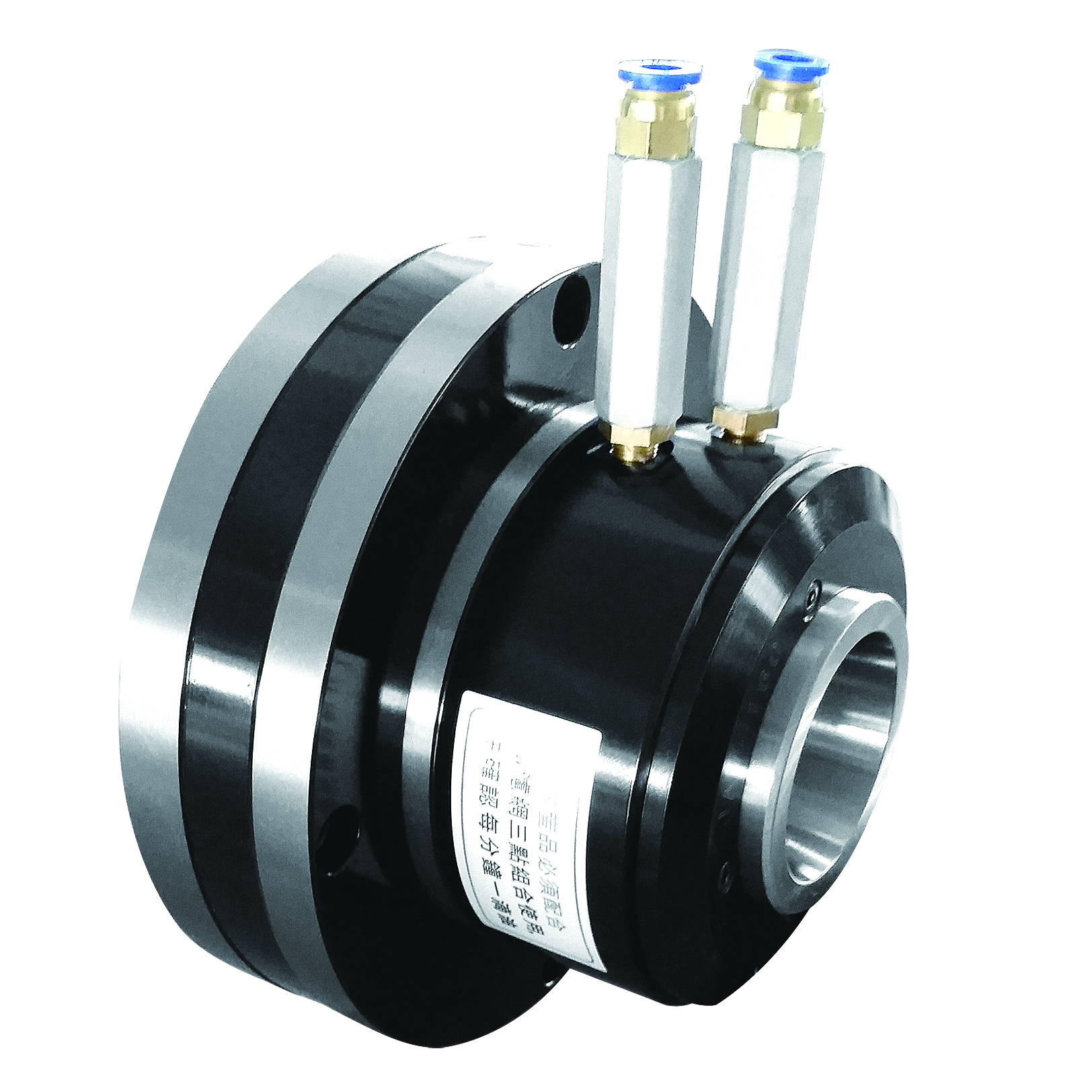

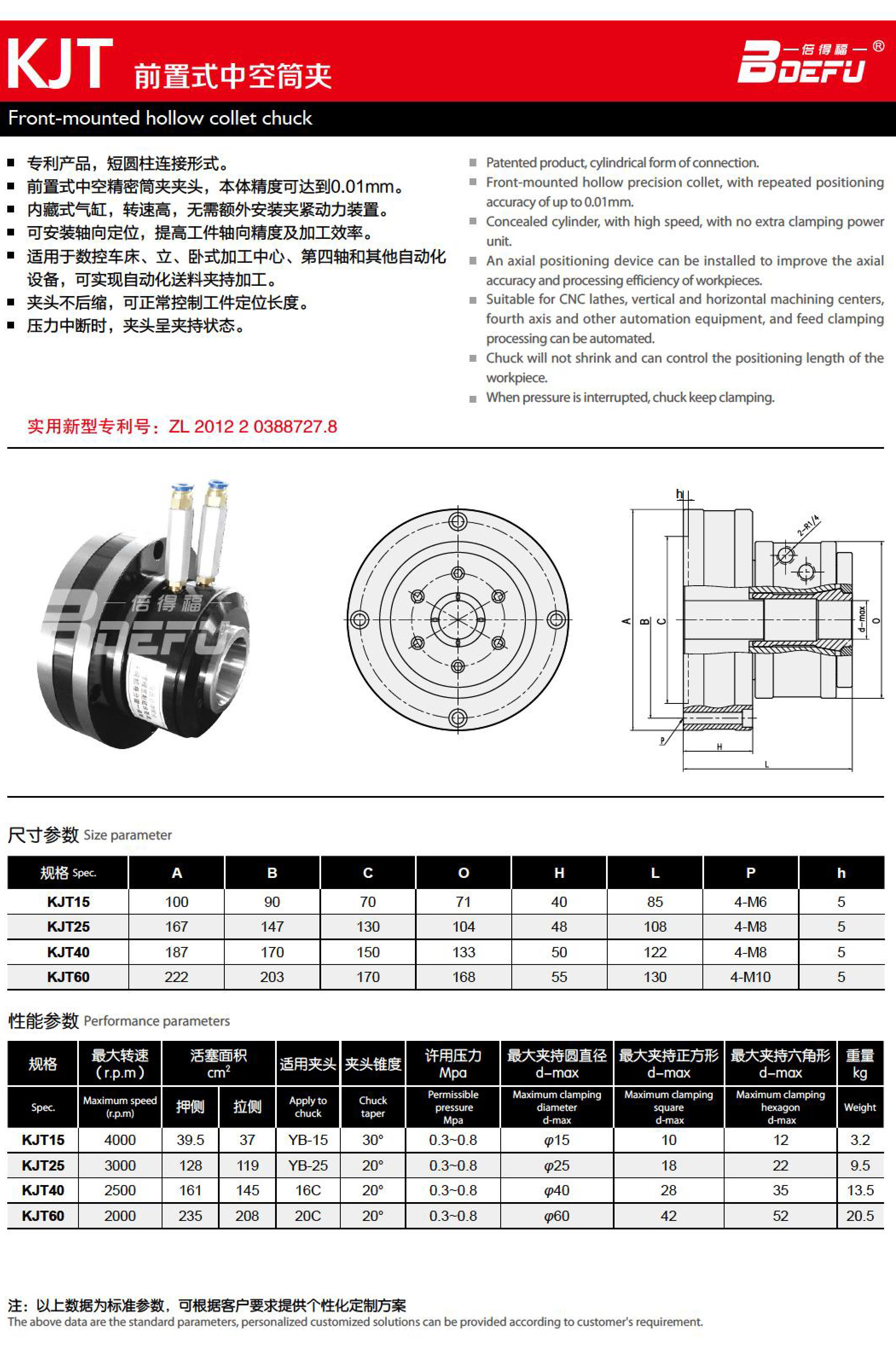

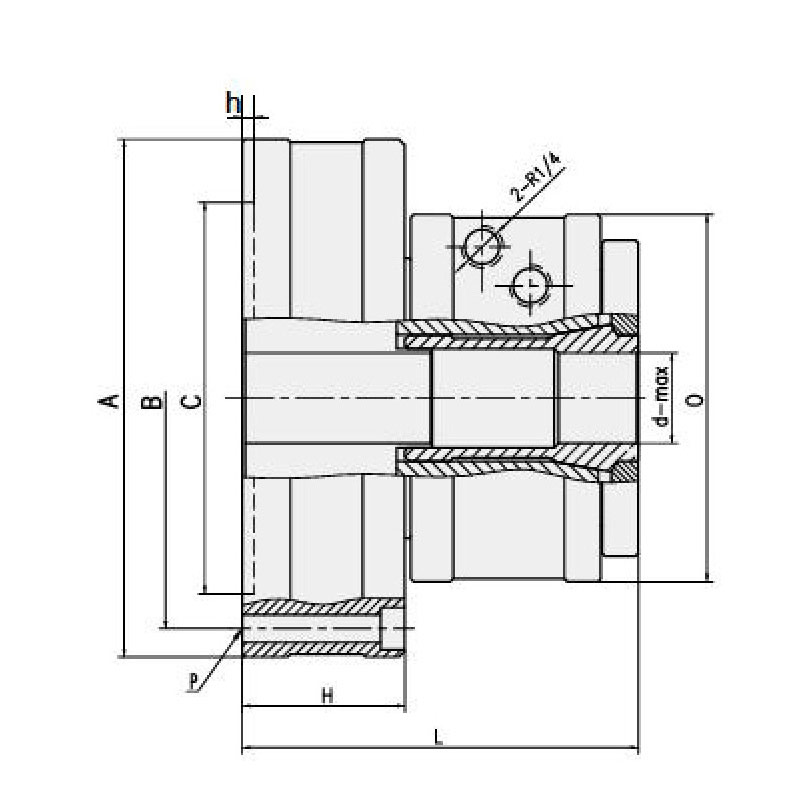

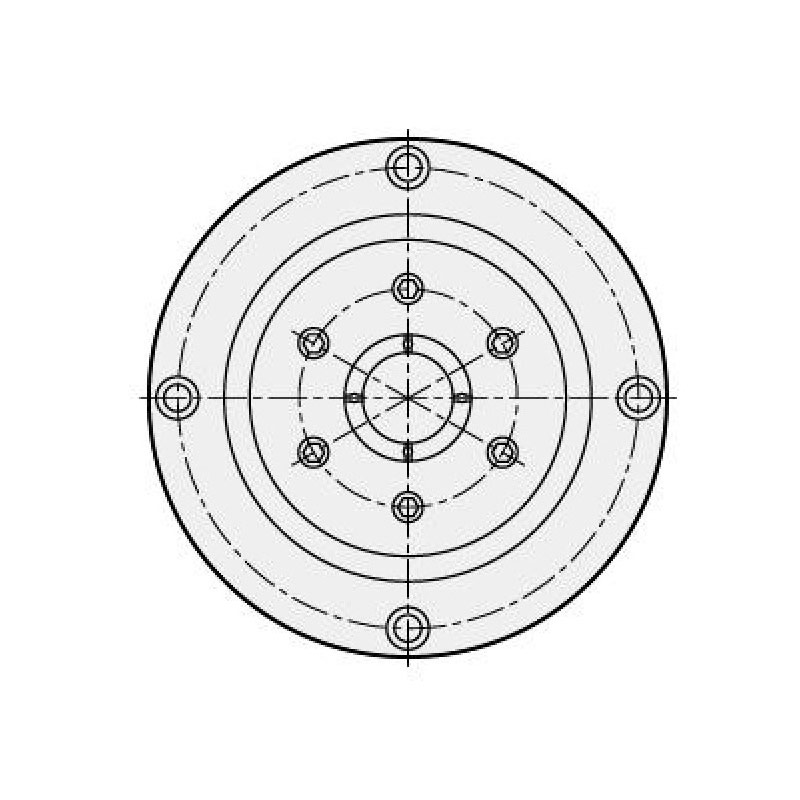

KJT front mounted hollow collet

Patented product, short cylindrical connection form.

Front-mounted hollow precision collet chuck, body accuracy can reach 0.01mm.

Built-in cylinder, high speed, no need to install additional clamping power device.

Axial positioning can be installed to improve the axial accuracy and processing efficiency of the workpiece.

It is suitable for CNC lathes, vertical and horizontal machining centers, fourth axis and other automation equipment, and can realize automatic feeding and clamping processing.

The chuck does not retract, and the positioning length of the workpiece can be controlled normally.

When the pressure is interrupted, the chuck is in a clamping state.
