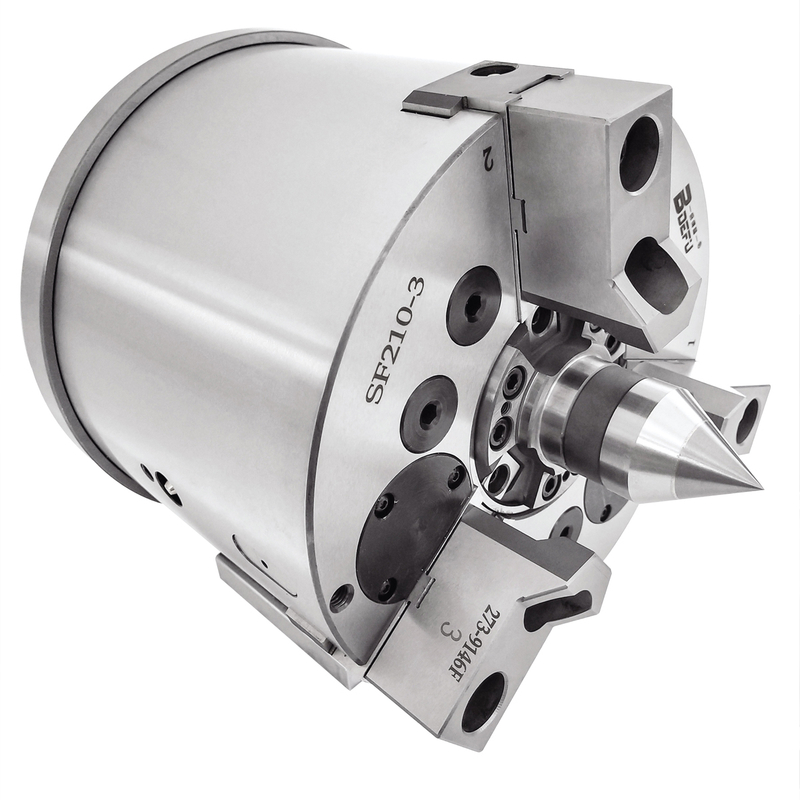

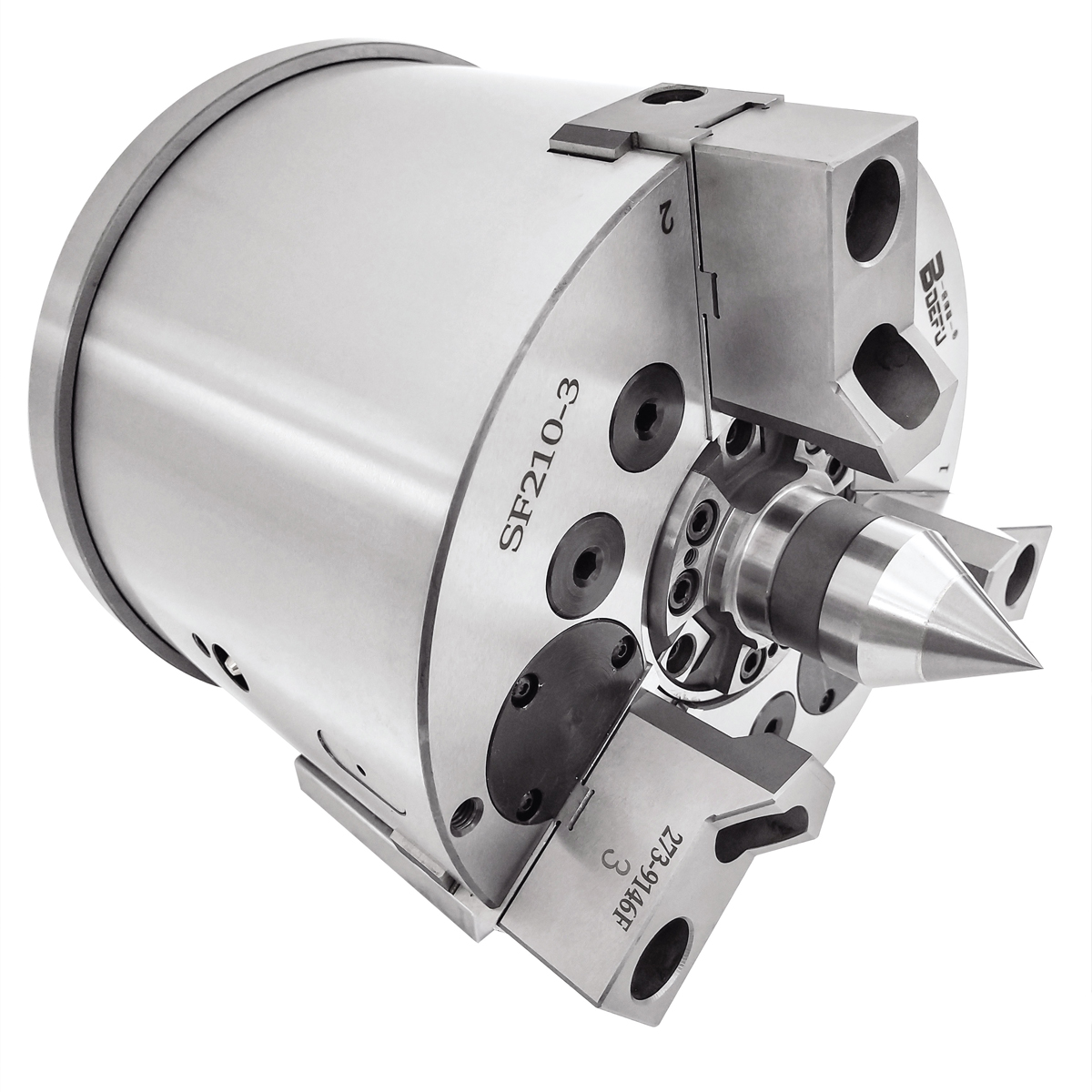

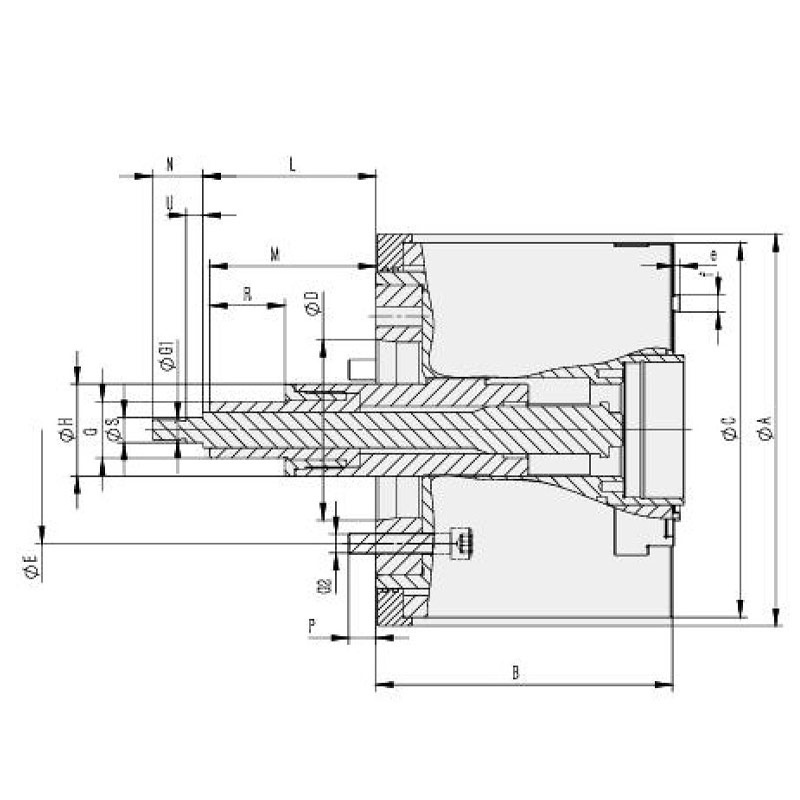

SF axis machining chuck

The axial direction is positioned with the center hole;

The fixed center ensures the highest concentricity; the driving pin is driven by piston 2 of the double-piston cylinder.

Push the end face of the workpiece (piston 1 is used for chuck drive);

The clamping/unclamping position of the end drive can be monitored by proximity switch/LPS;

Highest accuracy - no adjustments required;
