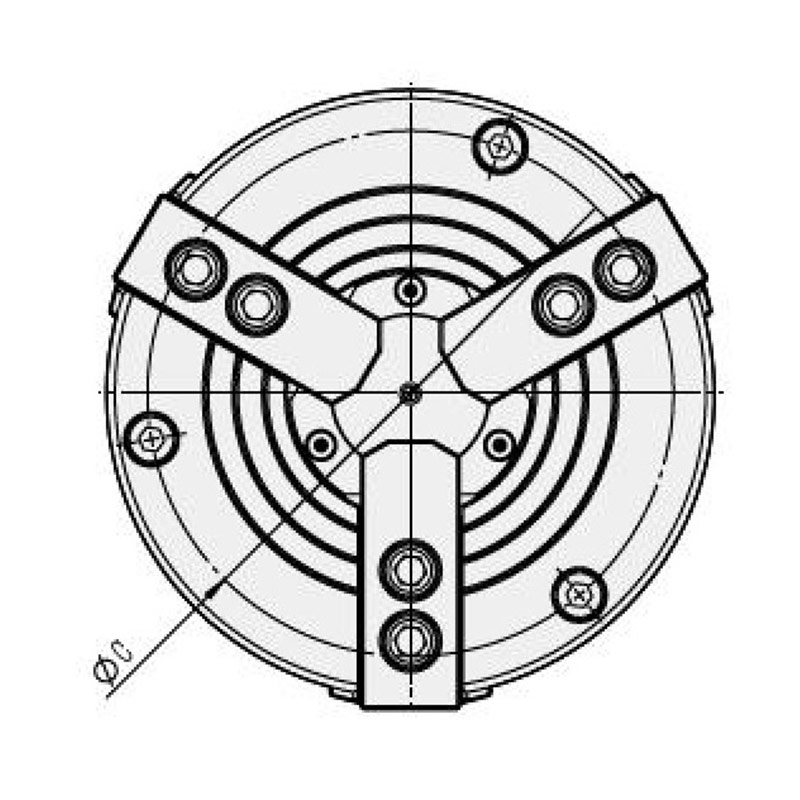

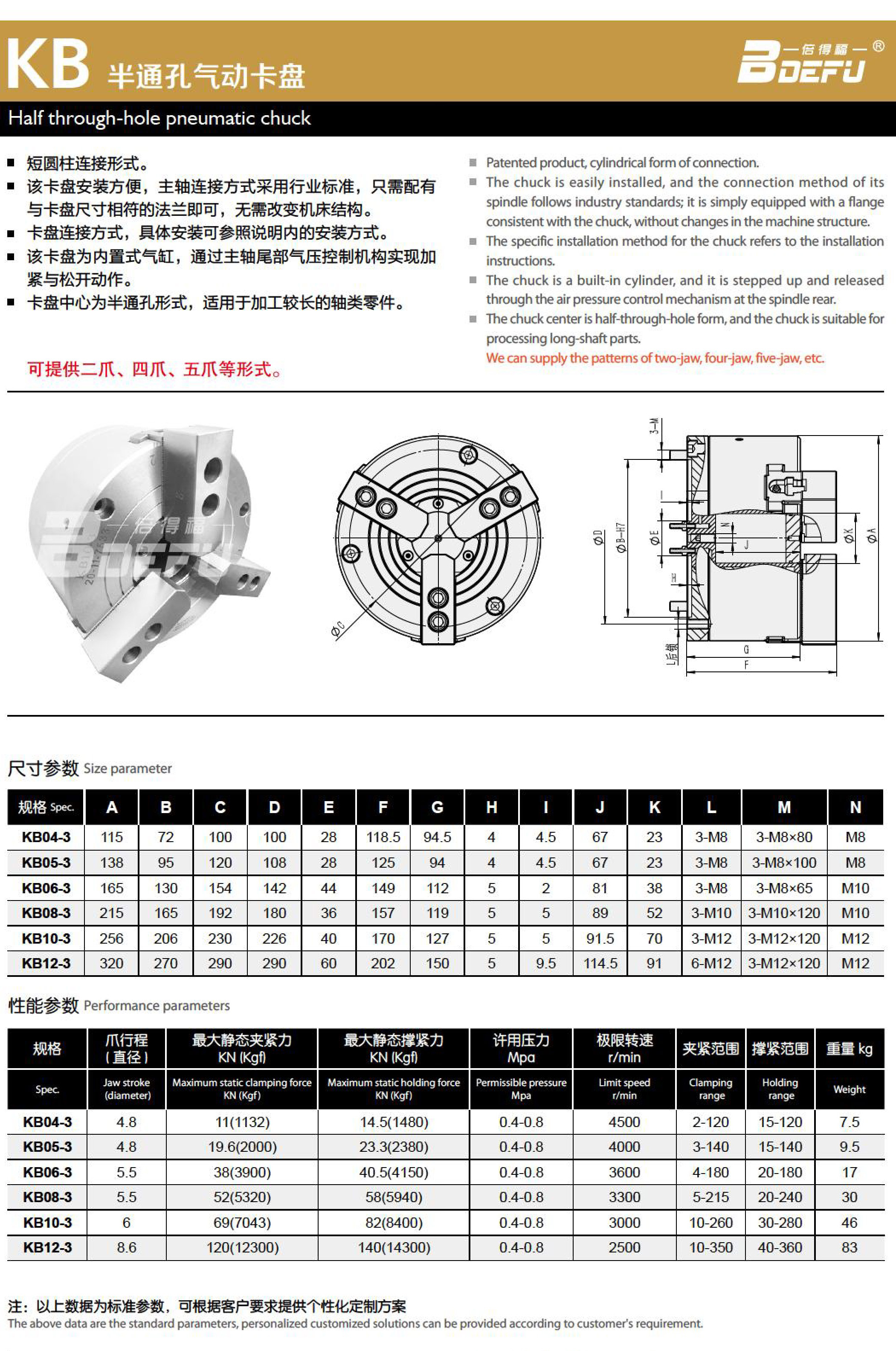

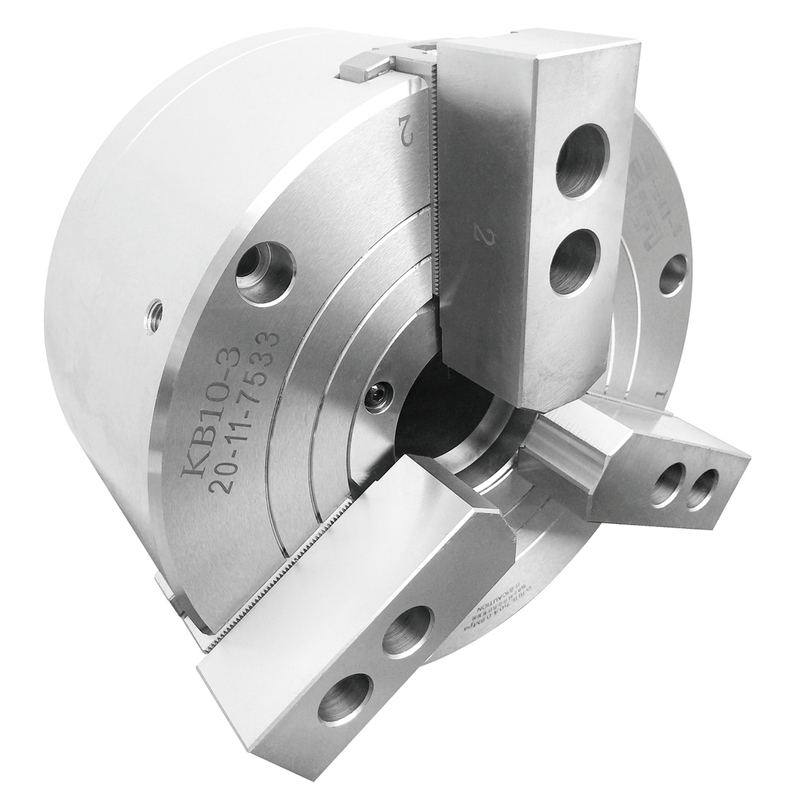

KB semi-through hole pneumatic chuck

Short cylindrical connection form.

The chuck is easy to install, and the spindle connection method adopts industry standards. It only needs to be equipped with a flange that matches the size of the chuck, and there is no need to change the machine tool structure.

For the chuck connection method, please refer to the installation method in the instructions for specific installation.

The chuck is a built-in cylinder, and the tightening and loosening actions are realized through the air pressure control mechanism at the end of the spindle.

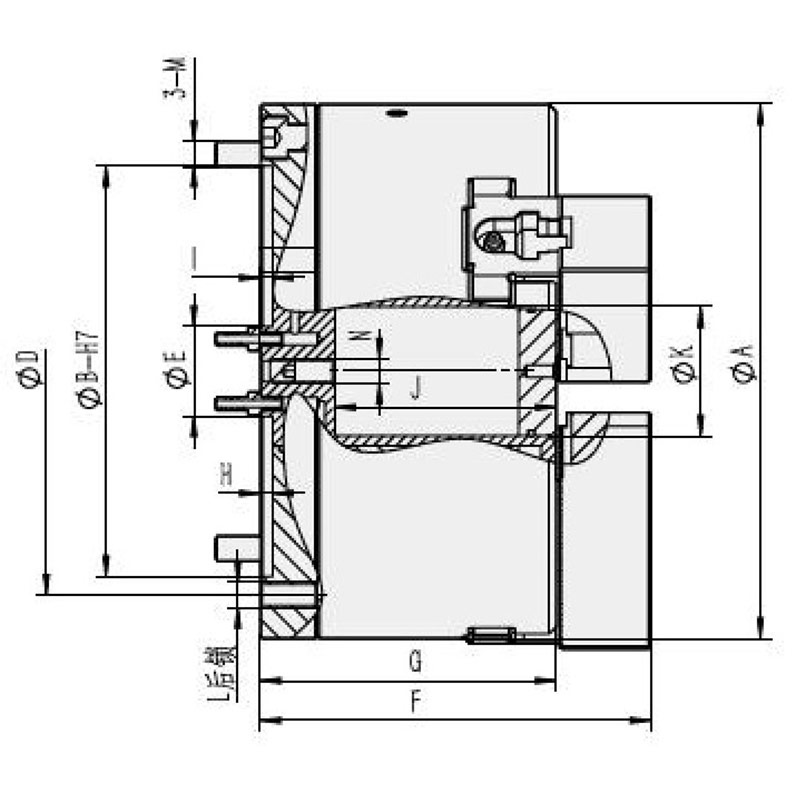

The center of the chuck is in the form of a semi-through hole, which is suitable for processing long shaft parts.
