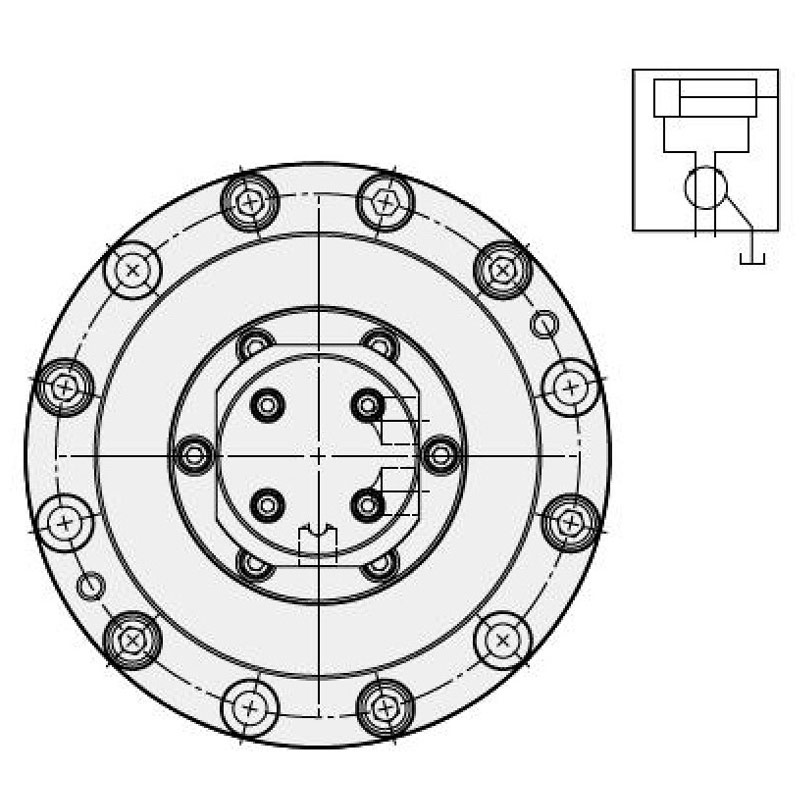

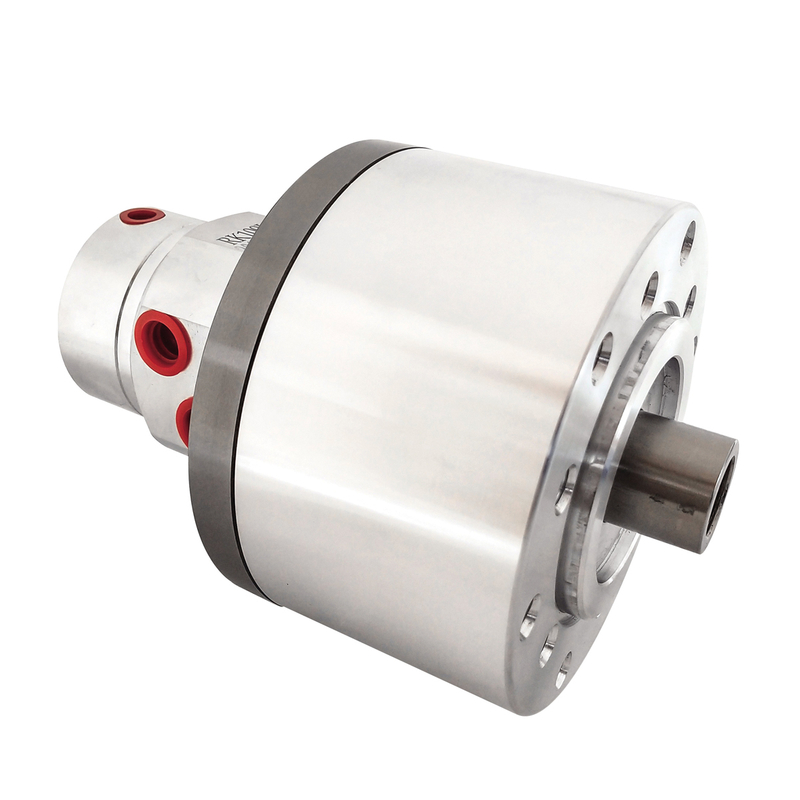

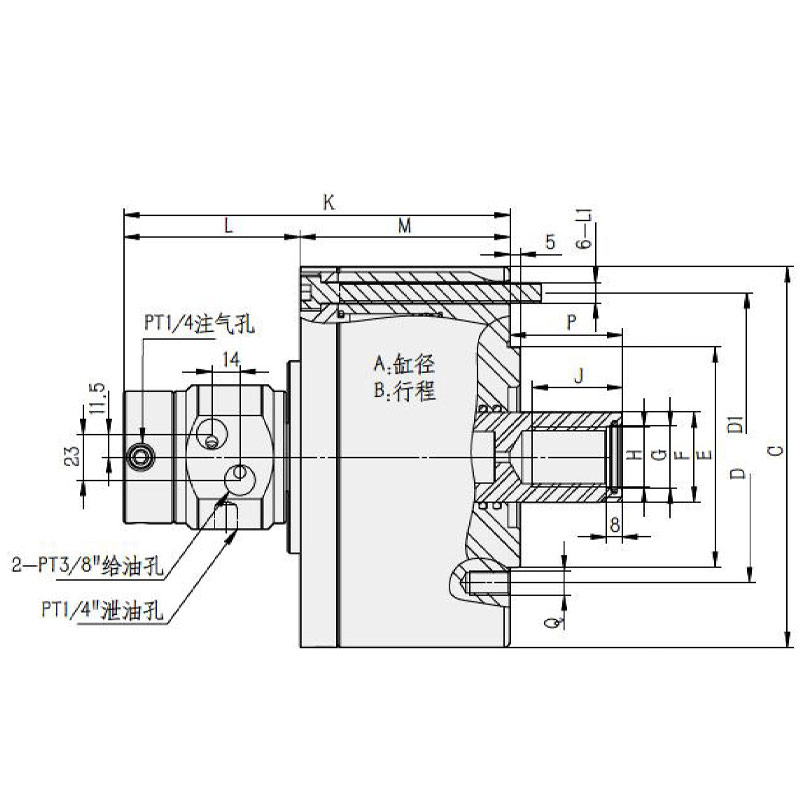

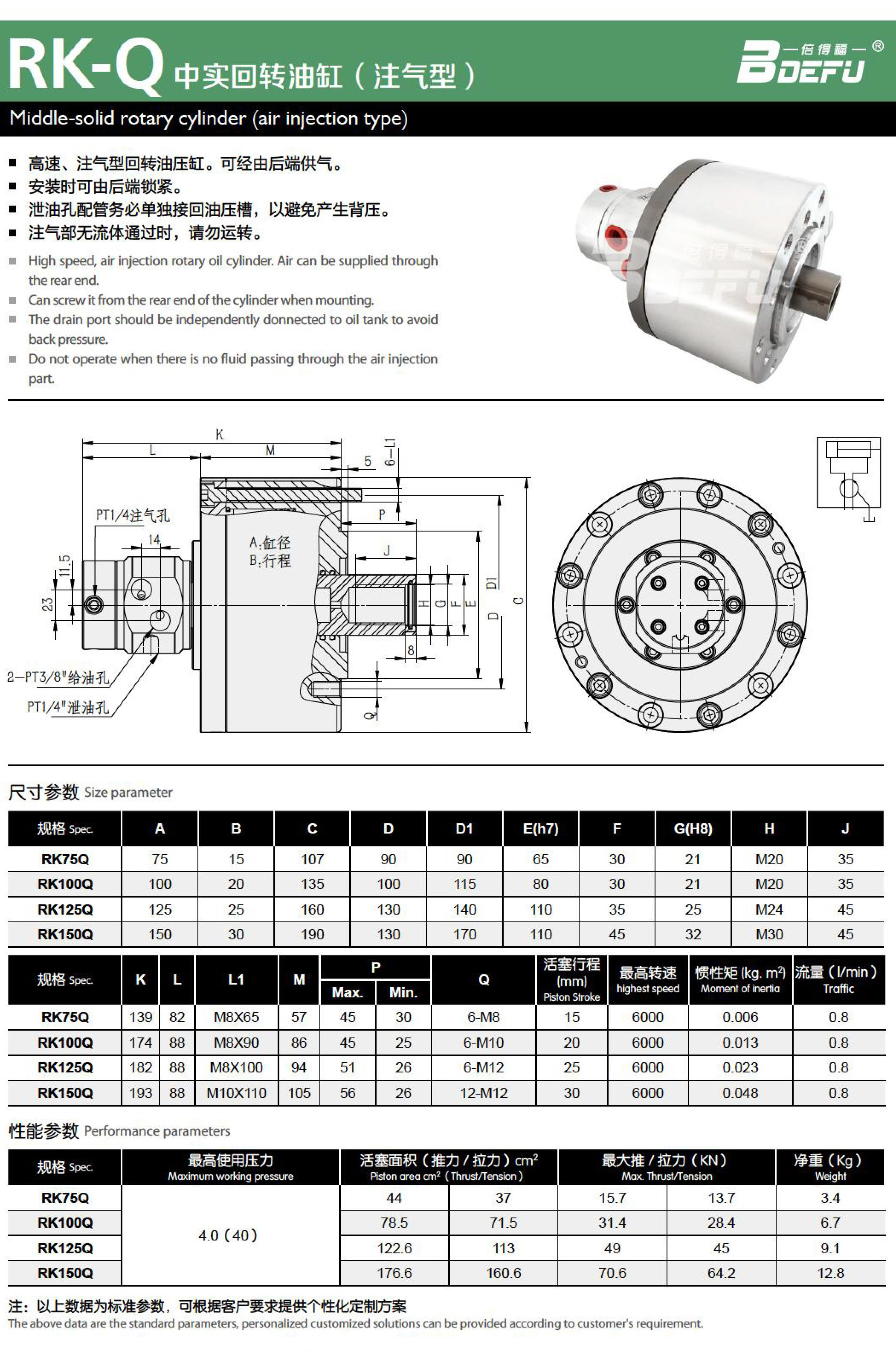

RK-Q Zhongshi rotary cylinder (gas injection type)

High speed, air injection type rotary hydraulic cylinder. Air supply available via rear end.

It can be locked by the rear end during installation.

The oil drain hole piping must be connected back to the oil pressure tank separately to avoid back pressure.

Do not operate when there is no fluid passing through the gas injection part.
